Die wichtigsten Merkmale des AF7115MZT sind:
• 5-Megapixel Edgesensor
• 20x-220x Vergrößerung
• Integrierten Polarisator
• Aluminiumgehäuse
• Flexible LED Control (FLC)
• Umfangreiche Messfunktionen
• Kalibrierung
• Austauschbare Frontkappen
• Drahtlos bereit
• Und mehr...
Die wichtigsten Merkmale des AF7515MZT ist:
• Automatic Magnification Reading (AMR)
Die wichtigsten Merkmale des AF7915MZT sind:
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
(*EDOF / EDR funktioniert nur unter Windows OS)
Information über Arbeitsabstand und Sichtfeld
| M | WD | FOV (x) | FOV (y) | DOF | |
|
10 |
142.6 |
39.6 |
29.7 |
26.0 |
|
|
20 |
60.1 |
19.8 |
14.8 |
7.0 |
|
|
30 |
33.6 |
13.2 |
9.9 |
3.3 |
|
|
40 |
21.0 |
9.9 |
7.4 |
2.0 |
|
|
50 |
14.0 |
7.9 |
5.9 |
1.4 |
|
|
60 |
9.8 |
6.6 |
4.9 |
1.0 |
|
|
70 |
7.3 |
5.7 |
4.2 |
0.8 |
|
|
80 |
5.7 |
4.9 |
3.7 |
0.6 |
|
|
90 |
4.8 |
4.4 |
3.3 |
0.5 |
|
|
100 |
4.3 |
4.0 |
3.0 |
0.4 |
|
|
110 |
4.2 |
3.6 |
2.7 |
0.4 |
|
|
120 |
4.3 |
3.3 |
2.5 |
0.3 |
|
|
130 |
4.7 |
3.0 |
2.3 |
0.3 |
|
|
140 |
5.2 |
2.8 |
2.1 |
0.3 |
|
|
150 |
5.8 |
2.6 |
2.0 |
0.3 |
|
|
160 |
6.5 |
2.5 |
1.9 |
0.2 |
|
|
170 |
7.3 |
2.3 |
1.8 |
0.2 |
|
|
180 |
8.1 |
2.2 |
1.6 |
0.2 |
|
|
190 |
9.1 |
2.1 |
1.6 |
0.2 |
|
|
200 |
10.0 |
2.0 |
1.5 |
0.2 |
|
|
210 |
11.0 |
1.9 |
1.4 |
0.2 |
|
|
220 |
12.1 |
1.8 |
1.3 |
0.2 |
|
M = magnification rate / Vergrößerungsrate
WD = working distance / Arbeitsabstand
FOV = field of view / Sichtfeld
DOF = depth of field / Schärfentiefe
Unit / Einheit = mm
| Lighting | |
|---|---|
| Light / LED type | White |
| Number of LEDs | 8 |
| LED on/off switchable: | Yes |
| Infrared filter | IR cut-filter >650 nm |
| Diffuser available | Yes (N3C-D included) |
| Emission filter | No |
| Polarizer | Yes, linear |
| Optics | |
| Magnification | 10 - 220x |
| Macro zoom | No |
| Working distance | Standard |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 5 Megapixel (2592 x 1944) |
| Maximum frame rate | 30 fps |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 7/8/10/11 MacOS 10.9 und up |
| Included software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (MacOS) | PNG, JPEG |
| Supported video formats (MacOS) | MOV(max 1.3MP) |
| Imaging standards | DirectShow, UVC |

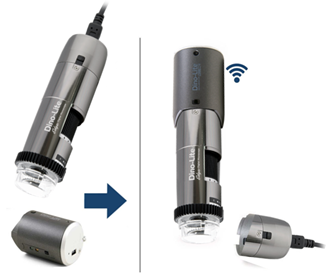

| Wifi | Wireless-ready, requires the WF-20 (optional) |
| Housing | |
| Housing material | Metal housing |
| Magnification lock | Yes |
| Dimensions | 10.5cm (L) x 3.2 cm (D) |
| Weight | 137 g |
| Cable length | 1.8m |
| Features | |
| Special feature | Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC). |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| ESD safe | Yes |
| Information | |
| Package contents | Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS, UKCA |
| Price range(AF7115MZT) | €929,00 |
| Price range(AF7515MZT) | €999,00 |
| Price range(AF7915MZT) | €1169,00 |
