DINO-LITE MOBILE & OPTION
Verkabelte und drahtlose Optionen zur Verbindung von Dino-Lite-Mikroskopen mit Smartphones, Tablets und anderen Mobilgeräten.

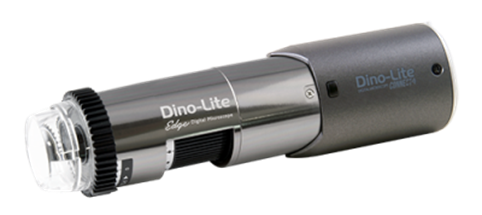

WF4115ZT / WF4515ZT / WF4915ZT
WF4115ZT - Wireless
- 1.3 MP, 1280x1024, 20x-220x
- einstellbarer Polarisator
- FLC, LEDs dimmbar
- Arbeitsabstand von 4-60,2mm
- austauschbare Frontkappe
- Mess- & Kalibrierfunktion
- Free iOS and Android App
WF4515ZT - Wireless
WF4115ZT + AMR

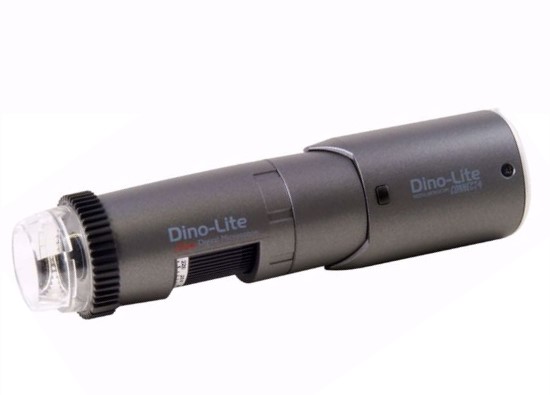

WF4915ZT - Wireless
WF4515ZT + EDOF + EDR

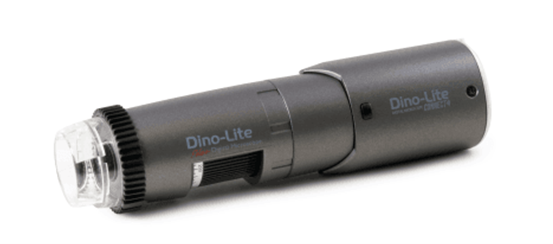

WF4115ZTL / WF4515ZTL / WF4915ZTL
WF4115ZTL - Wireless
- 1.3 MP, 1280x1024, 10x-140x
- einstellbarer Polarisator
- FLC, LEDs dimmbar
- Arbeitsabstand von 29.1-234.5mm
- austauschbare Frontkappe
- Mess- & Kalibrierfunktion
- Free iOS and Android APP
WF4515ZTL - Wireless
AF4115ZT + AMR
WF4915ZTL - Wireless
AF4515ZT + EDOF + EDR

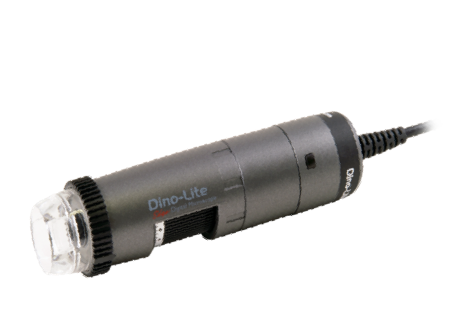

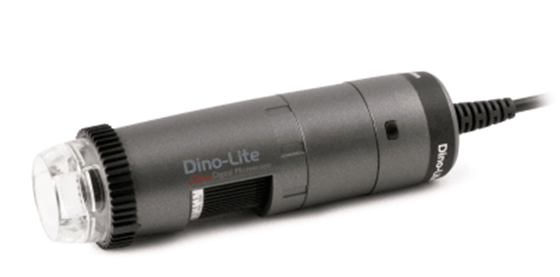

AF4115ZT / AF4515ZT / AF4915ZT
AF4115ZT - Wireless (optional)
- 1.3 MP, 1280x1024, 20x-220x
- einstellbarer Polarisator
- FLC, LEDs dimmbar
- Arbeitsabstand von 4-60,2mm
- austauschbare Frontkappe
- Mess- & Kalibrierfunktion
AF4515ZT - Wireless (optional)
AF4115ZT + AMR
AF4915ZT - Wireless (optional)
AF4515ZT + EDOF + EDR

AF4115ZTL / AF4515ZTL / AF4915ZTL
AF4115ZTL - Wireless;
- 1.3 MP, 1280x1024, 10x-140x
- einstellbarer Polarisator
- FLC, LEDs dimmbar
- Arbeitsabstand von 29.1-234.5mm
- austauschbare Frontkappe
- Mess- & Kalibrierfunktion
AF4515ZTL - Wireless
AF4115ZTL + AMR
AF4915ZTL - Wireless
AF4515ZTL + EDOF + EDR

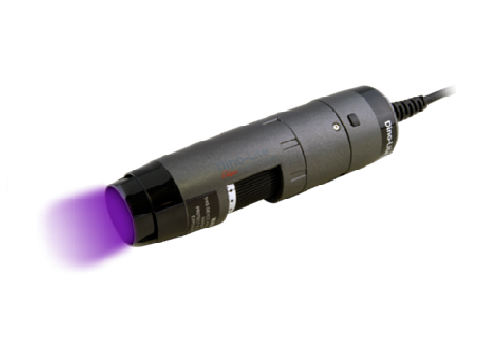

AF4515T-FVW
AF4515T-FVW - Wireless (optional)
- Drahtlos-Lösung (WF-20 WiFi-Adapter optional)
- 1.3 MP, 1280x1024, 20x-220x
- 4 x weiße / 4 x UV (395nm) LEDs
- Flexible LED-Control (FLC),, LEDs dimmbar
- Arbeitsabstand von 4-60,2mm
- Automatic Magnification Reading (AMR)
- austauschbare Frontkappe
- Mess- & Kalibrierfunktion

AF4515T-FUW
AF4515T-FUW-Wireless (optional)
- Drahtlos-Lösung (WF-20 WiFi-Adapter optional)
- 1.3 MP, 1280x1024, 20x-220x
- 4 x weiße / 4 x UV (395nm) LEDs
- Flexible LED-Control (FLC), LEDs dimmbar
- Arbeitsabstand von 4-60,2mm
- Automatic Magnification Reading (AMR)
- austauschbare Frontkappe
- Mess- & Kalibrierfunktion

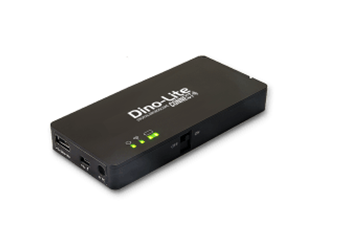

WF-20
- WiFi Streamer-Adapter für Dino-Lite AF-Modelle
- Unterstützt Protokoll Wi-Fi IEEE802.11b / g / n
- Frequenz 2,412 GHz ~ 2,485 GHz
- Akkulaufzeit 2,5 Stunden (getestet mit AF4915)
- Betriebstemperatur 10~45°C (50~113°F)
- Geräteabmessungen 58 mm (L) x 36,5 mm (B) x 32 mm (H)
- Stückgewicht ca. 57g
