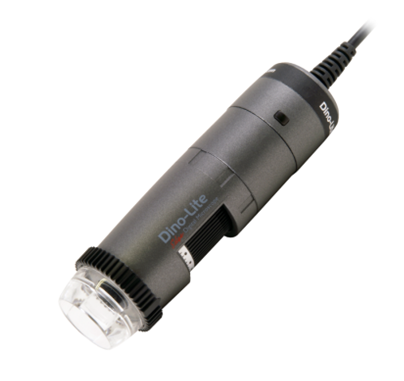

Das Dino-Lite AF4135ZTLE ist Teil der Serie mit Längerem Arbeitsabstand (LWD) und wird über USB an Ihr Gerät angeschlossen. Das AF4135ZTLE ist bereit für den Drahtlos-Betrieb, benötigt aber den WF-20 (optional), um eine vollständig drahtlose Lösung zu erreichen

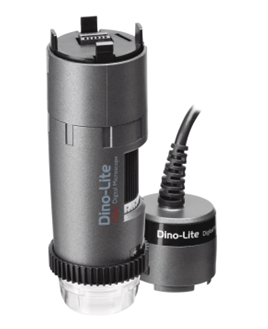

Das Dino-Lite AF4535ZTLE ist Teil der Serie mit Längerem Arbeitsabstand (LWD) und wird über USB an Ihr Gerät angeschlossen. Das AF4535ZTLE ist bereit für den Drahtlos-Betrieb, benötigt aber den WF-20 (optional), um eine vollständig drahtlose Lösung zu erreichen.
Das Dino-Lite AF4935ZTLE ist Teil der Serie mit Längerem Arbeitsabstand (LWD) und wird über USB an Ihr Gerät angeschlossen. Das AF4935ZTLE ist bereit für den Drahtlos-Betrieb, benötigt aber den WF-20 (optional), um eine vollständig drahtlose Lösung zu erreichen.
Das AF4135ZTLE ist mit premiummerkmalen ausgestattet, wie zum beispiel Flexibler LED-Kontrolle (FLC), integriertem polarisator, erweiterten messfunktionen.
Das AF4535ZTLE ist mit Premiummerkmalen ausgestattet, wie zum Beispiel Flexibler LED-Kontrolle (FLC), integriertem polarisator, erweiterten Messfunktionen und Automatischer Vergrößerung (AMR) für messintensive Anwendungen.
Das AF4935ZTLE ist mit Premiummerkmalen ausgestattet, wie zum Beispiel Tiefenschärfen-Erweiterung (EDOF), Erweitertem Dynamikbereich (EDR), Flexibler LED Kontrolle (FLC), integriertem polarisator, erweiterten Messfunktionen und Automatischer Vergrößerung (AMR) für messintensive Anwendungen.
Working distance/field of view/depth of field
Information über Arbeitsabstand und Sichtfeld
| M | WD | FOV (x) | FOV (y) | DOF | |
|
10 |
355.8 |
39.1 |
29.3 |
55.2 |
|
|
20 |
173.0 |
19.5 |
14.7 |
14.5 |
|
|
30 |
113.1 |
13.0 |
9.8 |
6.7 |
|
|
40 |
83.8 |
9.8 |
7.3 |
3.9 |
|
|
50 |
66.8 |
7.8 |
5.9 |
2.6 |
|
|
60 |
55.9 |
6.5 |
4.9 |
1.9 |
|
|
70 |
48.6 |
5.6 |
4.2 |
1.5 |
|
|
80 |
43.4 |
4.9 |
3.7 |
1.2 |
|
|
90 |
39.8 |
4.3 |
3.3 |
1.0 |
|
|
100 |
37.1 |
3.9 |
2.9 |
0.8 |
|
|
110 |
35.2 |
3.6 |
2.7 |
0.7 |
|
|
120 |
33.8 |
3.3 |
2.4 |
0.6 |
|
|
130 |
32.9 |
3.0 |
2.3 |
0.5 |
|
|
140 |
32.3 |
2.8 |
2.1 |
0.5 |
|
|
150 |
32.0 |
2.6 |
2.0 |
0.4 |
|
|
160 |
31.8 |
2.4 |
1.8 |
0.4 |
|
|
170 |
31.9 |
2.3 |
1.7 |
0.4 |
|
|
180 |
32.1 |
2.2 |
1.6 |
0.3 |
|
|
190 |
32.5 |
2.1 |
1.5 |
0.3 |
|
|
200 |
33.0 |
2.0 |
1.5 |
0.3 |
M = magnification rate
WD = working distance (without front cap)
FOV = field of view
DOF= depth of field
Unit = mm
Information über Arbeitsabstand und Sichtfeld
| M | WD | FOV (x) | FOV (y) | DOF | |
|
10 |
355.8 |
39.1 |
29.3 |
55.2 |
|
|
20 |
173.0 |
19.5 |
14.7 |
14.5 |
|
|
30 |
113.1 |
13.0 |
9.8 |
6.7 |
|
|
40 |
83.8 |
9.8 |
7.3 |
3.9 |
|
|
50 |
66.8 |
7.8 |
5.9 |
2.6 |
|
|
60 |
55.9 |
6.5 |
4.9 |
1.9 |
|
|
70 |
48.6 |
5.6 |
4.2 |
1.5 |
|
|
80 |
43.4 |
4.9 |
3.7 |
1.2 |
|
|
90 |
39.8 |
4.3 |
3.3 |
1.0 |
|
|
100 |
37.1 |
3.9 |
2.9 |
0.8 |
|
|
110 |
35.2 |
3.6 |
2.7 |
0.7 |
|
|
120 |
33.8 |
3.3 |
2.4 |
0.6 |
|
|
130 |
32.9 |
3.0 |
2.3 |
0.5 |
|
|
140 |
32.3 |
2.8 |
2.1 |
0.5 |
|
|
150 |
32.0 |
2.6 |
2.0 |
0.4 |
|
|
160 |
31.8 |
2.4 |
1.8 |
0.4 |
|
|
170 |
31.9 |
2.3 |
1.7 |
0.4 |
|
|
180 |
32.1 |
2.2 |
1.6 |
0.3 |
|
|
190 |
32.5 |
2.1 |
1.5 |
0.3 |
|
|
200 |
33.0 |
2.0 |
1.5 |
0.3 |
M = magnification rate
WD = working distance (without front cap)
FOV = field of view
DOF= depth of field
Unit = mm
Information über Arbeitsabstand und Sichtfeld
| M | WD | FOV (x) | FOV (y) | DOF | |
|
10 |
355.8 |
39.1 |
29.3 |
55.2 |
|
|
20 |
173.0 |
19.5 |
14.7 |
14.5 |
|
|
30 |
113.1 |
13.0 |
9.8 |
6.7 |
|
|
40 |
83.8 |
9.8 |
7.3 |
3.9 |
|
|
50 |
66.8 |
7.8 |
5.9 |
2.6 |
|
|
60 |
55.9 |
6.5 |
4.9 |
1.9 |
|
|
70 |
48.6 |
5.6 |
4.2 |
1.5 |
|
|
80 |
43.4 |
4.9 |
3.7 |
1.2 |
|
|
90 |
39.8 |
4.3 |
3.3 |
1.0 |
|
|
100 |
37.1 |
3.9 |
2.9 |
0.8 |
|
|
110 |
35.2 |
3.6 |
2.7 |
0.7 |
|
|
120 |
33.8 |
3.3 |
2.4 |
0.6 |
|
|
130 |
32.9 |
3.0 |
2.3 |
0.5 |
|
|
140 |
32.3 |
2.8 |
2.1 |
0.5 |
|
|
150 |
32.0 |
2.6 |
2.0 |
0.4 |
|
|
160 |
31.8 |
2.4 |
1.8 |
0.4 |
|
|
170 |
31.9 |
2.3 |
1.7 |
0.4 |
|
|
180 |
32.1 |
2.2 |
1.6 |
0.3 |
|
|
190 |
32.5 |
2.1 |
1.5 |
0.3 |
|
|
200 |
33.0 |
2.0 |
1.5 |
0.3 |
M = magnification rate
WD = working distance (without front cap)
FOV = field of view
DOF= depth of field
Unit = mm
Spezifikation
| Lighting | |
|---|---|
| Light / LED type | White |
| Number of LEDs | 8 |
| LED on/off switchable: | Yes |
| Infrared filter | IR cut-filter >650 nm |
| Diffuser available | Yes (N3C-D included) |
| Emission filter | No |
| Polarizer | Yes, linear |
| Optics | |
| Magnification | 10~200x |
| Macro zoom | No |
| Working distance | Long |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280 x 1024) |
| Maximum frame rate | 30 fps |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.12 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (MacOS) | JPEG, PNG |
| Supported video formats (MacOS) | MOV |
| Imaging standards | DirectShow, UVC |
| Wifi | Wireless-ready, requires the WF-20 adapter (optional) |
| Housing | |
| Housing material | Composite/ plastic housing |
| Magnification lock | Yes |
| Dimensions | 11.4cm (L) x 3.3cm (D) |
| Weight | 111g |
| Cable length | 1.8m |
| Features | |
| Special feature | Flexible LED Control (FLC) |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| ESD safe | No |
| Information | |
| Package contents | Microscope, Carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- extension cap, N3C-L- Long cap, N3C-S- Side light cap |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Price range | €659,00 |
| Lighting | |
|---|---|
| Light / LED type | White |
| Number of LEDs | 8 |
| LED on/off switchable: | Yes |
| Infrared filter | IR cut-filter >650 nm |
| Diffuser available | Yes (N3C-D included) |
| Emission filter | No |
| Polarizer | Yes, linear |
| Optics | |
| Magnification | 10~330x |
| Macro zoom | No |
| Working distance | Standard |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280 x 1024) |
| Maximum frame rate | 30 fps |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.12 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (MacOS) | JPEG, PNG |
| Supported video formats (MacOS) | MOV |
| Imaging standards | DirectShow, UVC |
| Wifi | Wireless-ready, requires the WF-20 adapter (optional) |
| Housing | |
| Housing material | Composite/ plastic housing |
| Dimensions | 11.4cm (L) x 3.3cm (D) |
| Weight | 111g |
| Cable length | 1.8m |
| Features | |
| Special feature | Automatic Magnification Reading(AMR), Flexible LED Control (FLC) |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| ESD safe | No |
| Information | |
| Package contents | Microscope, Carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- extension cap, N3C-L- Long cap, N3C-S- Side light cap |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Price range | €729.00 |
| Lighting | |
|---|---|
| Light / LED type | White |
| Number of LEDs | 8 |
| LED on/off switchable: | Yes |
| Infrared filter | IR cut-filter >650 nm |
| Diffuser available | Yes (N3C-D included) |
| Emission filter | No |
| Polarizer | Yes, linear |
| Optics | |
| Magnification | 10~330x |
| Macro zoom | No |
| Working distance | Standard |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280 x 1024) |
| Maximum frame rate | 30 fps |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.12 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (MacOS) | JPEG, PNG |
| Supported video formats (MacOS) | MOV |
| Imaging standards | DirectShow, UVC |
| Wifi | Wireless-ready, requires the WF-20 adapter (optional) |
| Housing | |
| Housing material | Composite/ plastic housing |
| Dimensions | 11.4cm (L) x 3.3cm (D) |
| Weight | 111g |
| Cable length | 1.8m |
| Features | |
| Special feature | Automatic Magnification Reading(AMR), Ext. Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC) |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| ESD safe | No |
| Information | |
| Package contents | Microscope, Carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- extension cap, N3C-L- Long cap, N3C-S- Side light cap |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Price range | €939,00 |
