Wir der Microtouch für 2 Sekunden gedrückt, werden die integrierten LEDs ein- und wieder ausgeschaltet. Das Aluminiumgehäuse bietet einen hohen Schutz und Langlebigkeit des Modells. Der eingebaute, einstellbare Polarisationsfilter ermöglicht dem Anwender bei stark reflektierenden Oberflächen (Metall, Kunststoffe, elektronische Teile) diese soweit zu reduzieren, das ein auswertbares Bild zur Verfügung steht.

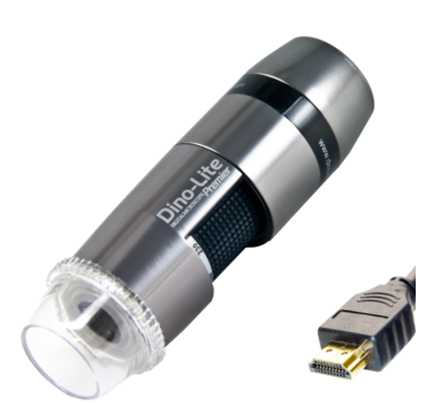

Das Dino-Lite AM5218MZT/AM5218MZTL Edge kann über eine DVI/HDMI-Schnittstelle direkt an einen HDTV oder LCD-Monitor angeschlossen werden. Durch die scharfe 720p HD Auflösung sind kleinste Details erkennbar.
AM5218MZT
AM5218MZTL
Working distance/field of view/depth of field
Information über Arbeitsabstand und Sichtfeld
| M | WD | FOV (x) | FOV (y) | DOF | |
|
10 |
234.5 |
39.0 |
23.4 |
12.0 |
|
|
20 |
112.5 |
19.5 |
11.7 |
4.5 |
|
|
30 |
72.5 |
13.0 |
7.8 |
3.1 |
|
|
40 |
54.5 |
9.8 |
4.7 |
1.8 |
|
|
50 |
43.5 |
7.8 |
4.7 |
1.2 |
|
|
60 |
37.5 |
6.5 |
3.9 |
0.9 |
|
|
70 |
33.7 |
5.6 |
3.4 |
0.6 |
|
|
80 |
31.3 |
4.9 |
3.0 |
0.5 |
|
|
90 |
29.9 |
4.3 |
2.6 |
0.37 |
|
|
100 |
29.2 |
3.9 |
2.3 |
0.28 |
|
|
110 |
29.1 |
3.5 |
2.1 |
0.22 |
|
|
120 |
29.3 |
3.3 |
2.0 |
0.17 |
|
|
130 |
29.8 |
3.0 |
1.8 |
0.12 |
|
|
140 |
30.5 |
2.8 |
1.7 |
0.09 |
M = magnification rate
WD = working distance (without front cap)
FOV = field of view
DOF= depth of field
Unit = mm
Information über Arbeitsabstand und Sichtfeld
| M | WD | FOV (x) | FOV (y) | DOF |
|
20 |
60.2 |
19.5 |
11.7 |
2.5 |
|
30 |
33.5 |
13 |
7.8 |
1.8 |
|
40 |
20.9 |
9.8 |
5.9 |
1.5 |
|
50 |
13.9 |
7.8 |
4.7 |
|
|
60 |
9.7 |
6.5 |
3.9 |
|
|
70 |
7.1 |
5.6 |
3.4 |
1.0 |
|
80 |
5.5 |
4.9 |
3.0 |
|
|
90 |
4.5 |
4.3 |
2.6 |
|
|
100 |
4.1 |
3.9 |
2.3 |
|
|
110 |
4 |
3.6 |
2.1 |
|
|
120 |
4.1 |
3.3 |
2.0 |
|
|
130 |
4.5 |
3 |
1.8 |
|
|
140 |
5 |
2.8 |
1.7 |
|
|
150 |
5.6 |
2.6 |
1.6 |
|
|
160 |
6.3 |
2.4 |
1.5 |
|
|
170 |
7.1 |
2.3 |
1.4 |
|
|
180 |
8 |
2.2 |
1.3 |
|
|
190 |
8.9 |
2.1 |
1.2 |
|
|
200 |
9.9 |
2 |
1.2 |
|
|
210 |
10.9 |
1.9 |
1.1 |
|
|
220 |
11.9 |
1.8 |
1.1 |
0.1 |
M = magnification rate
WD = working distance (without front cap)
FOV = field of view
DOF= depth of field
Unit = mm
Spezifikation

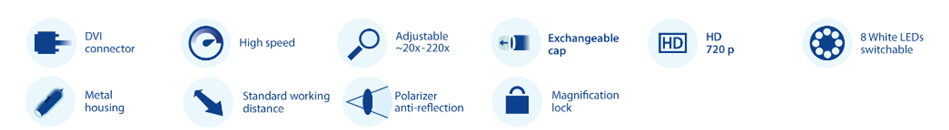

| Lighting | |
|---|---|
| Light / LED type | White |
| Number of LEDs | 8 |
| LED on/off switchable: | Yes |
| Infrared filter | IR cut-filter >650 nm |
| Emission filter | No |
| Polarizer | Yes, linear |
| Optics | |
| Magnification-AM5218MZT | 20~220x |
| Macro zoom | No |
| Working distance | Standard |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | HD 720p |
| Maximum frame rate | 60 fps |
| Compatibility | |
| Interface | DVI & HDMI |
| Wifi | No |
| Housing | |
| Housing material | Metal housing |
| Magnification lock | Yes |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 125g |
| Cable length | 1.8m |
| Features | |
| Special feature | No |
| Measurement | No |
| Calibration | No |
| Microtouch sensor | Yes |
| ESD safe | Yes |
| Information | |
| Package contents | Microscope, carry pouch, DVI & HDMI cable, power adapter, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Price range | €919,00 |

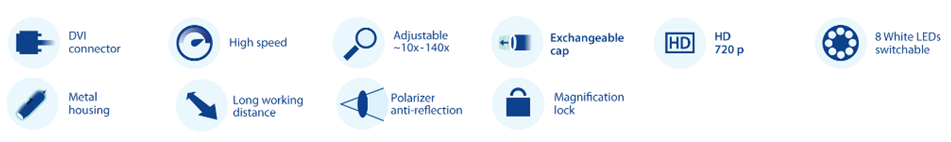

| Lighting | |
|---|---|
| Light / LED type | White |
| Number of LEDs | 8 |
| LED on/off switchable: | Yes |
| Infrared filter | IR cut-filter >650 nm |
| Emission filter | No |
| Polarizer | Yes, linear |
| Optics | |
| Magnification-AM5218MZT | 10~140x |
| Macro zoom | No |
| Working distance | Long |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | HD 720p |
| Maximum frame rate | 60 fps |
| Compatibility | |
| Interface | DVI & HDMI |
| Wifi | No |
| Housing | |
| Housing material | Metal housing |
| Magnification lock | Yes |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 125g |
| Cable length | 1.8m |
| Features | |
| Special feature | No |
| Measurement | No |
| Calibration | No |
| Microtouch sensor | Yes |
| ESD safe | Yes |
| Information | |
| Package contents | Microscope, carry pouch, DVI & HDMI cable, power adapter, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Price range | €919,00 |
